Pneumatic Conveying

READ THROUGH OUR DATA SHEET OR DOWNLOAD THE PDF

Mactenn Product Range

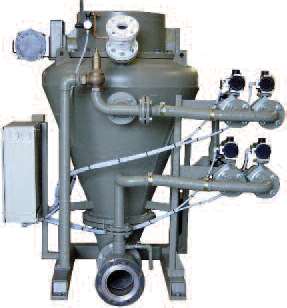

MINIMAXFLO®

The MiniMaxflo® is a sensible altenative to high material
conveying systems, such as lean-phase and medium-
phase pneumatic conveying systems. High efficiency
material transfer without material degradation is achieved
in a very compact, low cost system.

This is a perfect
choice for low transfer rate requirements for fragile and
abrasive materials.

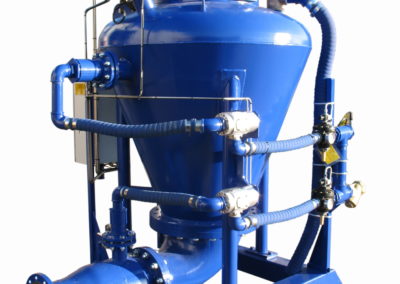

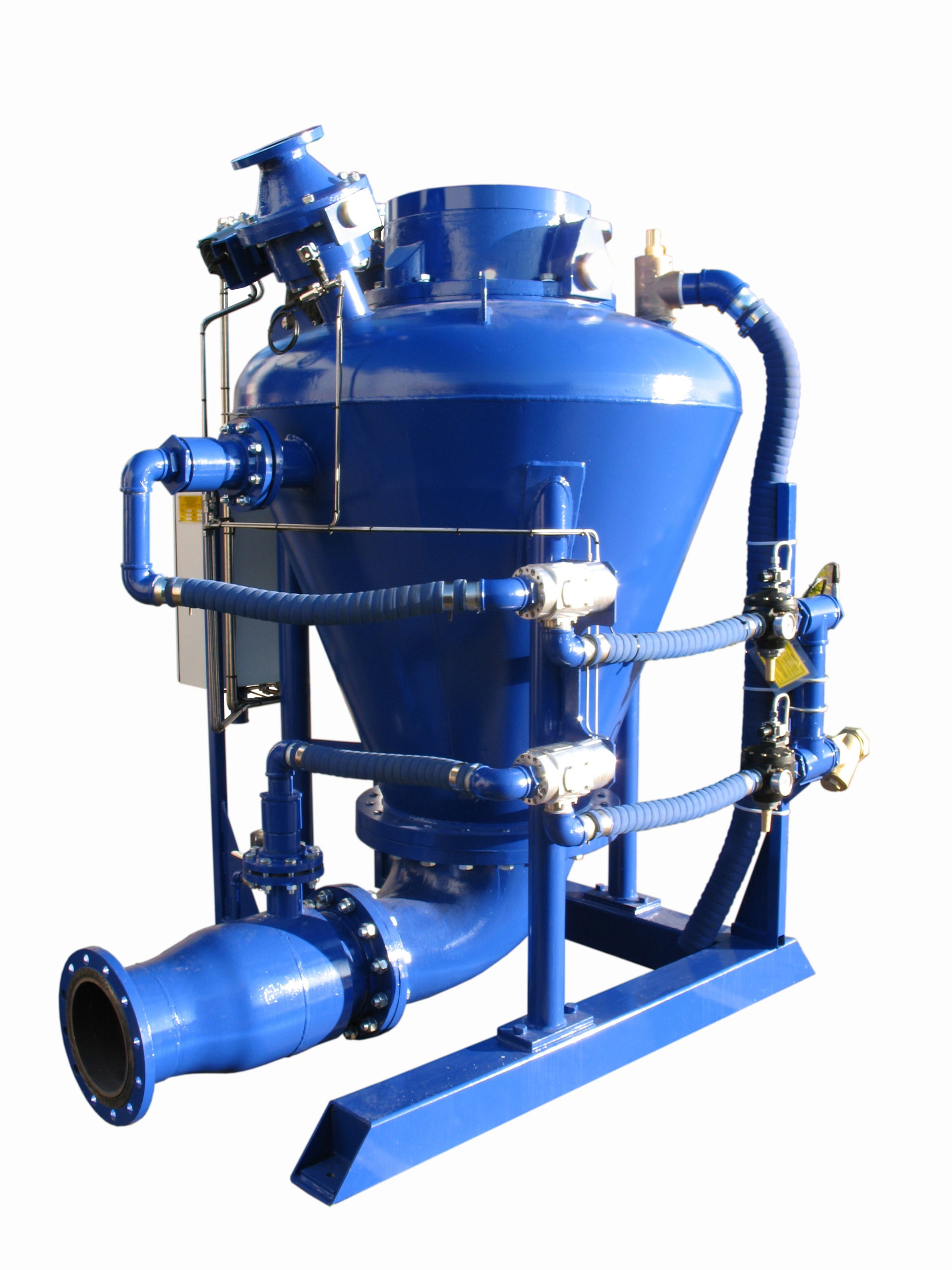

MAXFLO®

The ultimate system for handling difficult-to-convey
materials and hot, abrasive and wet materials, or for
providing gentle handling of products to prevent
degradation of friable materials or separation of blended
materials.

MINIMAXFLO®

The MiniMaxflo® is a sensible altenative to high material
conveying systems, such as lean-phase and medium-
phase pneumatic conveying systems. High efficiency
material transfer without material degradation is achieved
in a very compact, low cost system.

This is a perfect
choice for low transfer rate requirements for fragile and
abrasive materials.

SUPERMAXFLO®

The SuperMaxflo® achieves a solid dense phase
conveying regime for very low material velocities, with little
or no degradation of the most fragile materials, such as
food products.

MACPUMP® & VARIFLO®

The Macpump® conveys high capacities over great dis-
tances. It is capable of conveying materials such as
cement, lime and fly ash at rates of 250 t/h up to dis-
tances of 2,000 m.

The Variflo® is a continuous transfer system for longer
distances and rates in excess of the Maxflo® range.

MAXSANDFLO®

Designed specifically for dry sand _ conveying,
MaxSandflo® is based on proven dense phase pneumatic
principles. Air introduction, simplified system controls, and
top discharge have been designed specifically for this use.
MaxSandflo® can be manufactured without custom
modifications and sold ‘off-the-shelf’ for fast, easy
installation.

MULTIASHFLO®

Designed specifically for conveying hot, abrasive ash,
MultiAshflo® conveys bottom ash, clinkers or fly ash from
fluid boiler beds, baghouses or electrostatic precipitators
at temperatures up to 350 °C. It may be arranged in
multiples of one to 10 units in a single line. lt uses about
50 % less power than existing fly ash conveying systems.

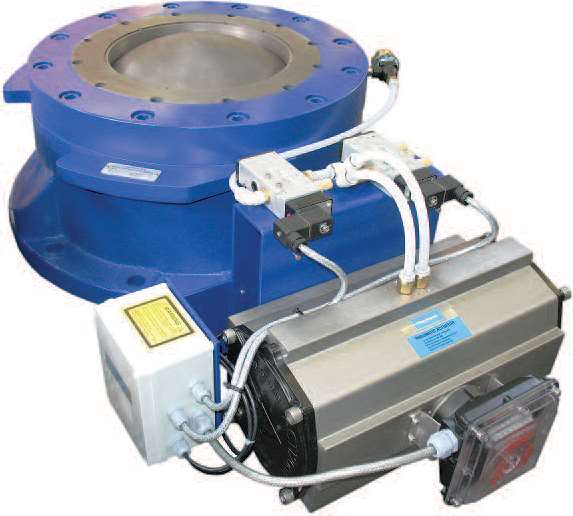

MACTENN INFLATEK® VALVE

Mactenn Inflatek® Valves are fitted to all the Mactenn dense phase pneumatic conveying systems. Used in a variety of applications in almost every process, the Mactenn Inflatek® Valve enables continuous reliable operation, where conventional valves fail to perform.

Other benefits include:

®@ continuous wear compensation when handling abra-
sive materials or operating under high pressure
differential.
_________________________________________________________

M™@ inflatable seal provides compensation throughout
temperature range of 0 °C to 350 °C.
_________________________________________________________

™@ closes and seals through packed material.
_________________________________________________________

™@ seal protection by cleaning ring removing particles
adhering to the dome surface.
_________________________________________________________

drive options include automatic double acting actuators
_________________________________________________________

M®@ reliability — heavy duty valve rated for hundreds of
thousands of cycles between inspections in approved
applications.
_________________________________________________________

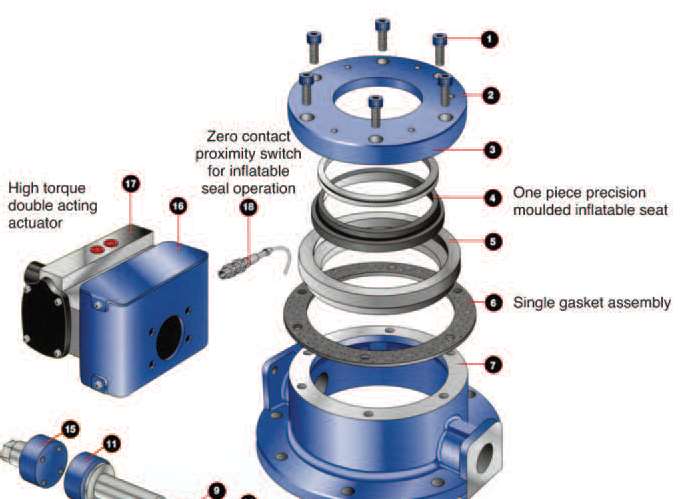

The Mactenn Inflatek® inflatable seat valve is an innovative departure from the traditional valve seat approach to achieving sealing efficiency and acceptable valve seat life. It is unique in its ability to close and seal through a moving column of material.

_________________________________________________________

Standard Options
Size Options:

50 mm to 400 mm
Design Temperature: 100 °C to 350 °C

Design Pressure: 7 Barg.
Flanges: PN 16, PN 10 or ANSI 150
Construction: Cast Iron A278, Stainless Steel 304/316,

Non-Standard Options

Size Options: To 1,100 mm
Design Temperature: <600 °C
Design Pressure: To 48 Barg.

PRESSURE TIGHT SEALING

The inflatable flexible seats entrap particles that are nor-
mally the cause of seat erosion. Particles are induced to
move across valve seats under the influence of pressure
differentials on either side of the closing member.
Entrapping particles within a flexible face during the
period of valve closure, prevents particle movement and
considerably reduces valve seat wear. Inflatable seats
allow automatic wear compensation. The seal is easily
removed for inspection.
